3.2.2 Network Appliances

Network appliances are specialized hardware or software devices designed to manage, secure, and distribute traffic within a functional enterprise environment.

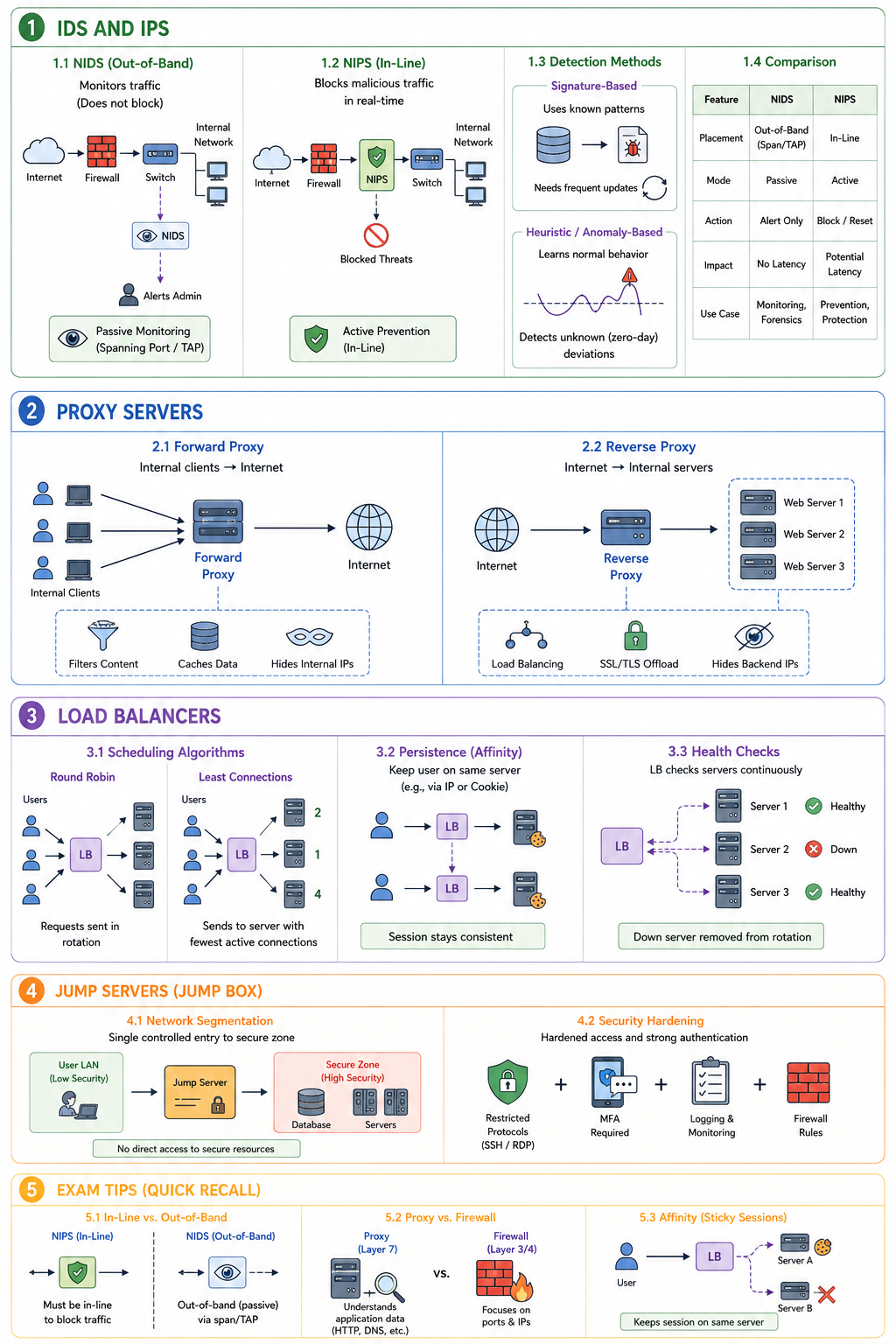

IDS and IPS Intrusion detection and prevention systems monitor network traffic for malicious activity or policy violations. - NIDS (Network Intrusion Detection System): Operates in passive mode. It monitors traffic via a spanning port or TAP and alerts administrators. It does not stop the traffic itself. - NIPS (Network Intrusion Prevention System): Operates in active mode (in-line). It can drop malicious packets or reset connections in real-time to prevent an exploit. - Signature-based detection: Uses a database of known attack patterns (definitions) to identify threats; requires frequent updates. - Heuristic/Anomaly-based: Establishes a performance baseline and triggers an alert when traffic deviates from "normal" patterns, useful for detecting zero-day attacks.

Proxy Servers Proxies act as intermediaries between internal clients and external servers to provide anonymity or security. - Forward Proxy: Used by internal clients to access the internet. It can filter content, cache data to save bandwidth, and hide internal IP addresses. - Reverse Proxy: Sits in front of a web server to handle incoming requests. It provides load balancing, SSL/TLS decryption (offloading), and hides the backend server's identity.

Load Balancers These devices distribute incoming network traffic across multiple servers to ensure high availability and responsiveness. - Scheduling algorithms: Common methods include Round Robin (equal distribution) and Least Connections (sending traffic to the least busy server). - Persistence (Affinity): Ensures a user’s session stays on the same backend server (e.g., using source IP or cookies) so their shopping cart or login state is not lost. - Health Checks: The load balancer periodically "pings" backend servers; if one fails, it is automatically removed from the rotation.

Jump Servers A Jump Server (or Jump Box) is a hardened, highly secured "staging" server used to manage devices in a different security zone. - Network Segmentation: Provides a single controlled entry point from a low-security zone (like a standard LAN) to a high-security zone (like a DMZ or database segment). - Security Hardening: Usually restricted to specific management protocols (SSH/RDP) and requires Multi-Factor Authentication (MFA).

Exam tips - In-line vs. Out-of-band: NIPS must be in-line to block traffic; NIDS is out-of-band (passive). - Proxy vs. Firewall: A proxy operates at the Application Layer (Layer 7) and understands specific protocol data, whereas a basic firewall often focuses on ports/IPs. - Affinity: If an exam question mentions a "session-aware" application failing because of load balancing, the solution is Sticky Sessions or Affinity.
